ABB Soft Starters, PSTX Series, PSTX840-600-70
Item Number
MFG Item Number
Series
Description
ABB Soft Starters, PSTX Series, PSTX840-600-70
Product Details
Overview
Item #

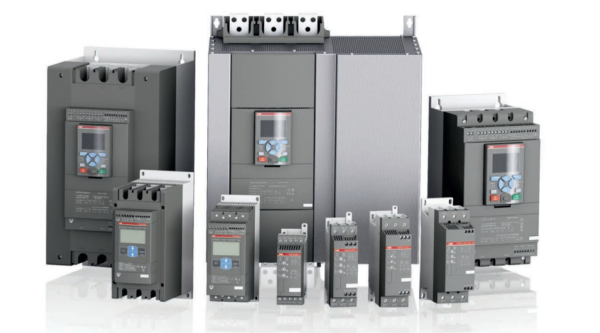

PSTX Series Information
- Open Soft Starter
- Keyhole Mounting
- Three‑Phase Controlled
- Rated Operational Current: 30 to 1250 Amps
- Coated Circuit Boards
Soft starters which control an advanced range of operational currents. A three‑phase control yields a safe, gradual start to motors of currents both large and small.
Specifications
Ships Factory Direct : Yes
Manufacturer Part Number : PSTX840-600-70
Manufacturer : ABB
Product Series : PSTX
Family Series : ABB Soft Starters, PSTX Series
Description : Softstart, 840A, 600V, 100-250AC Ctl Class 10 In-Line Ratings: 350HP/240V 700HP/480V, 19.4in.Hx17.1in.Wx14.5in.D
Nominal Load Voltage : 208 V, 240 V, 280 V, 480 V, 575 V
Control Voltage : 100-250 VAC
Input Range Voltage (AC) : 208-600 VAC
Max Current 840 A
Max HP 200/208V 3PH 300 hp
Max HP 230/240V 3PH 350 hp
Max HP 460/480V 3PH 700 hp
Max HP 575/600V 3PH 800 hp
Temperature : (F) -13-140 °F
Bypass Yes
Overload Capacity 400% for 10 Seconds
Enclosure No
Connection Type In-Line
Communications Modbus RTU Built-in, Optional Field Bus Modules
Approvals CE, cUL, UL
Comments Detachable Keypad, Built-in Bypass, Torque Control For Pumps, Slow Speed Forward And Backward Jog
Net Weight 101.85 lbs
Gross Weight 101.87 lbs
